Kyosho 1/10 Dodge Challenger SRT Hellcat FZ02L - Purple

  • Sale
  • Regular price $599.00
  • 1 available
Shipping calculated at checkout.


Kyosho 1/10 Dodge Challenger SRT Hellcat FZ02L - Plam Crazy Purple

"The American muscle car" Dodge Challenger SRT Hellcat "that everyone longs for is reproduced with a high quality body! "


For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 260mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.


●Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis.
●Full ball bearings that reduce drive loss equipped throughout the drive system.
●Features KS202W waterproof steering servo.
●Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces.
●Shaft drive full-time 4WD touring chassis(FZ02).
●Equipped with a plated dummy brake disc and a painted brake caliper to improve the sense of scale.
●Uses button screws with hexagonal holes in each part. Reliable tightening torque can be applied, and maintenance is possible with even fewer tools.
●Since the motor mount has mounting holes according to the pinion gear, troublesome backlash adjustment is unnecessary. Supports from 29T to 37T.
●Performance can be further enhanced by installing various optional parts.

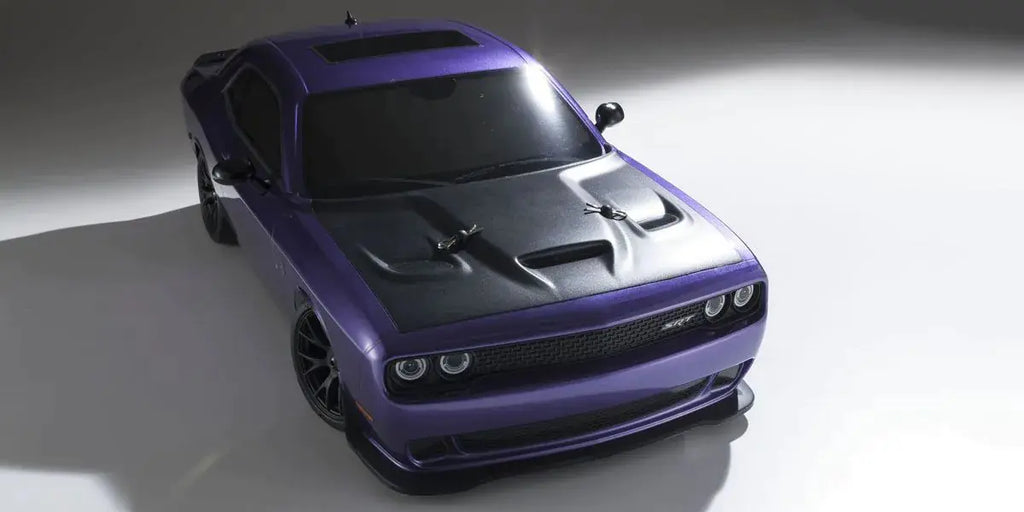

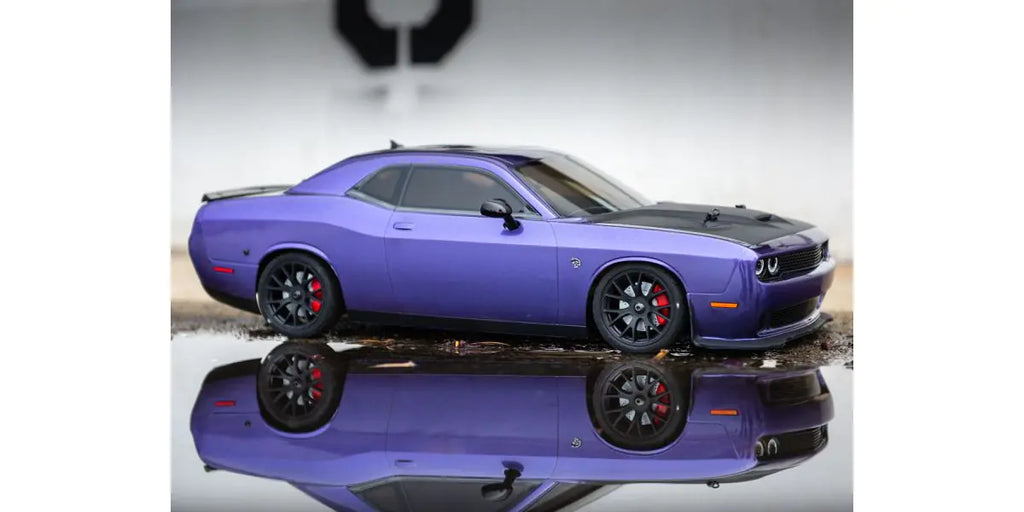

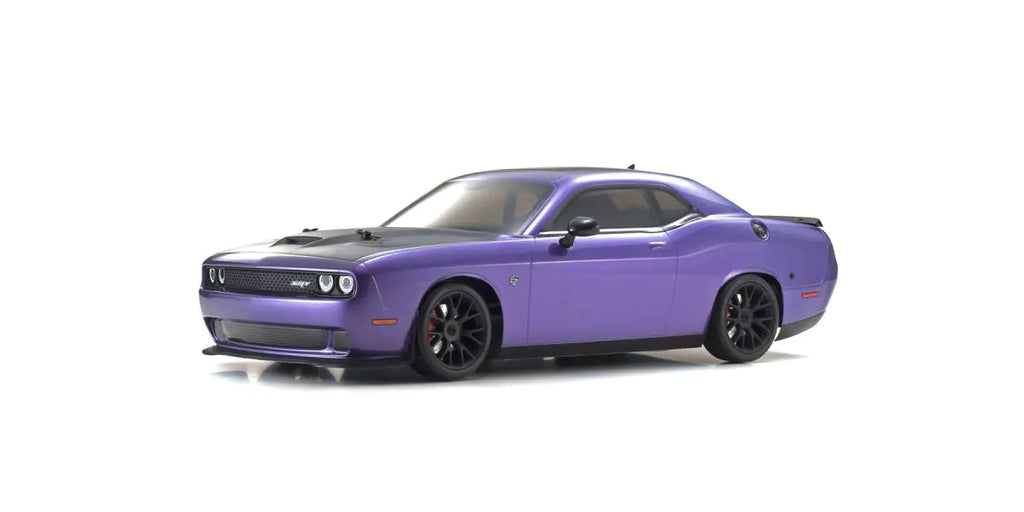

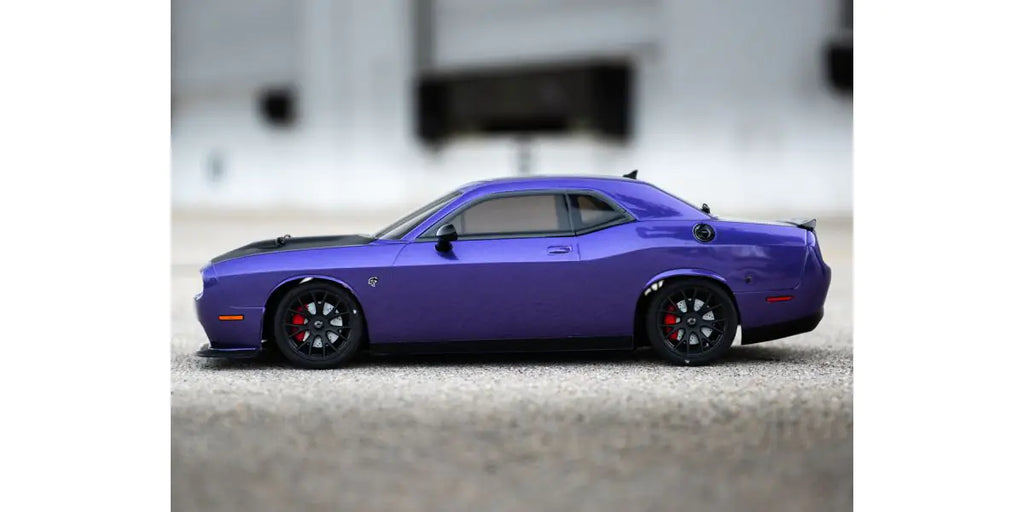

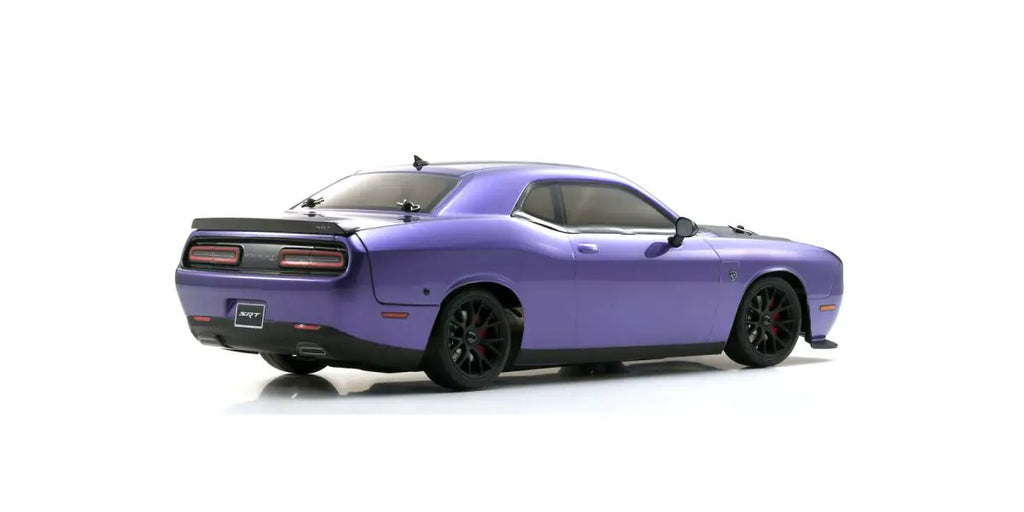

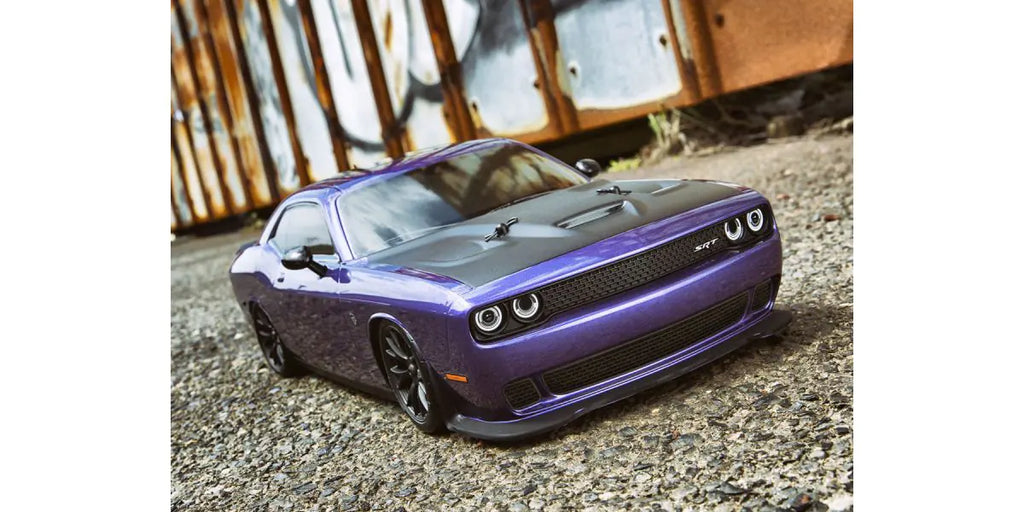

Mounted on the FAZER Mk2 touring car chassis is the awesome polycarbonate American muscle car body form of the Dodge Challenger SRT Hellcat with its supercharged 6.2L V8 outputting a maximum of 717ps and 89.7kg/m.

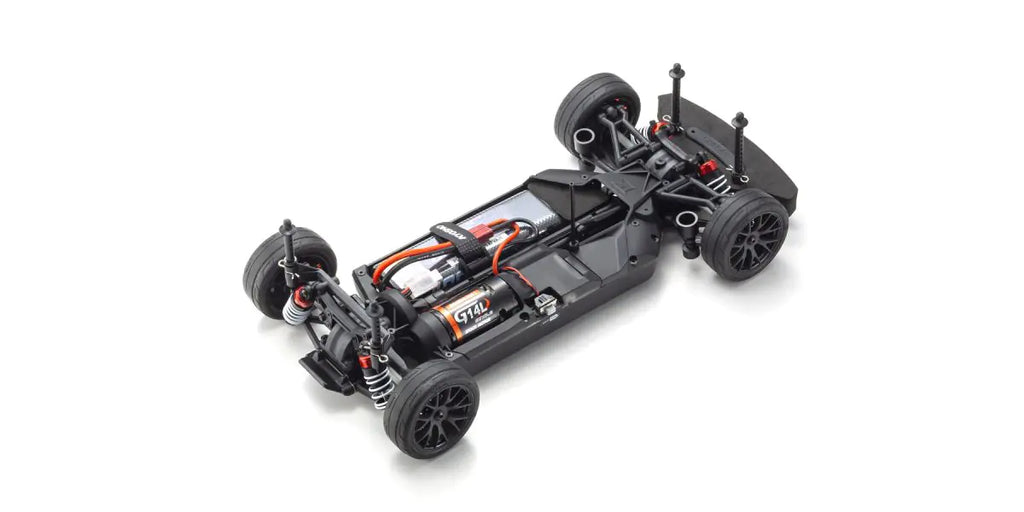

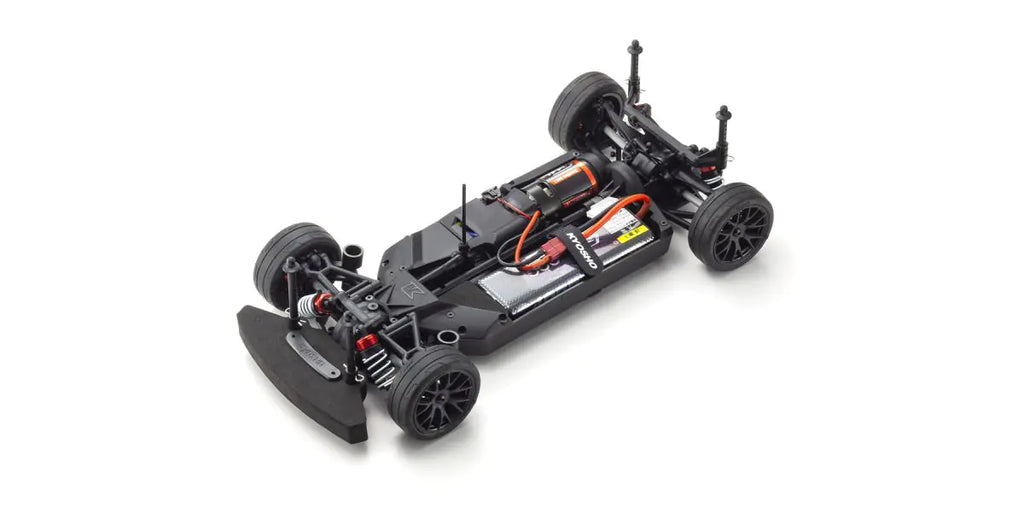

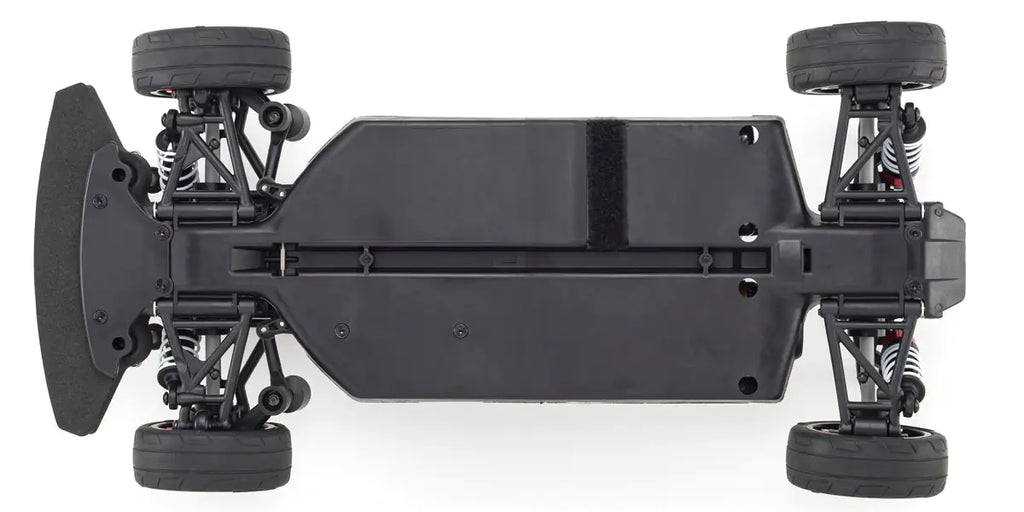

Simple low center of gravity upper deckless chassis design features an electronic speed controller and receiver cover as well as a one-piece gearbox that optimizes main chassis torsional rigidity and strength while reducing weight with the introduction of lightweight impact-resistant nylon.

Features a reduced number and variety of screws and parts, and consolidation of frequently used screws into the same size. Most screws are flat head screws that can be removed with a 2.0mm hex wrench for easy disassembly.

Handling factors such as bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle promises reliable control movement. Interchangeable on both front and rear left-right hub carriers optimize spare parts utilization and improve maintenance efficiency.

Oil shocks mark an evolutionary step up from previous models Oil shock is newly designed. Optimal front-rear geometry and balance simultaneously delivers both light handling and precise control.

Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratio settings. Also, motor is mounted directly according to the pinion gear modules.

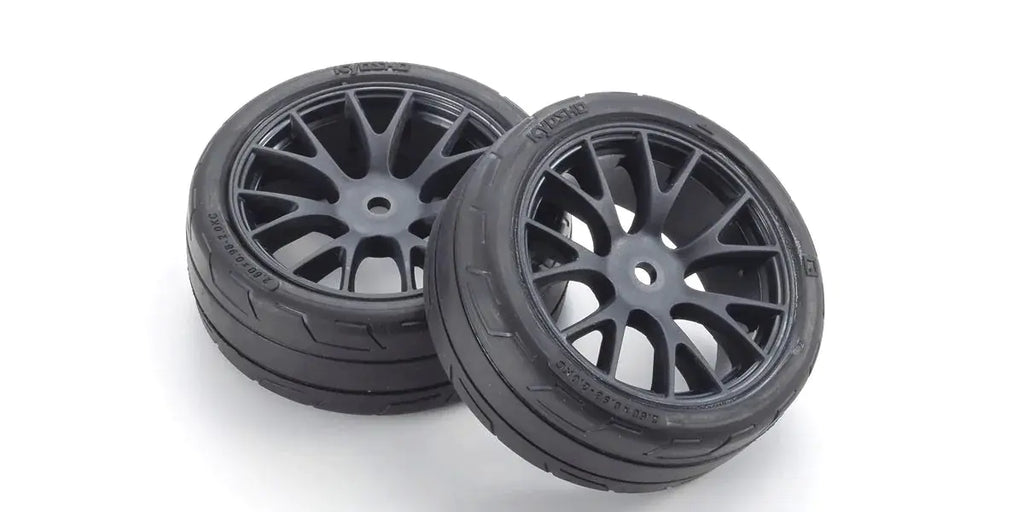

Original low-profile semi-slick pattern tires produce superior performance.

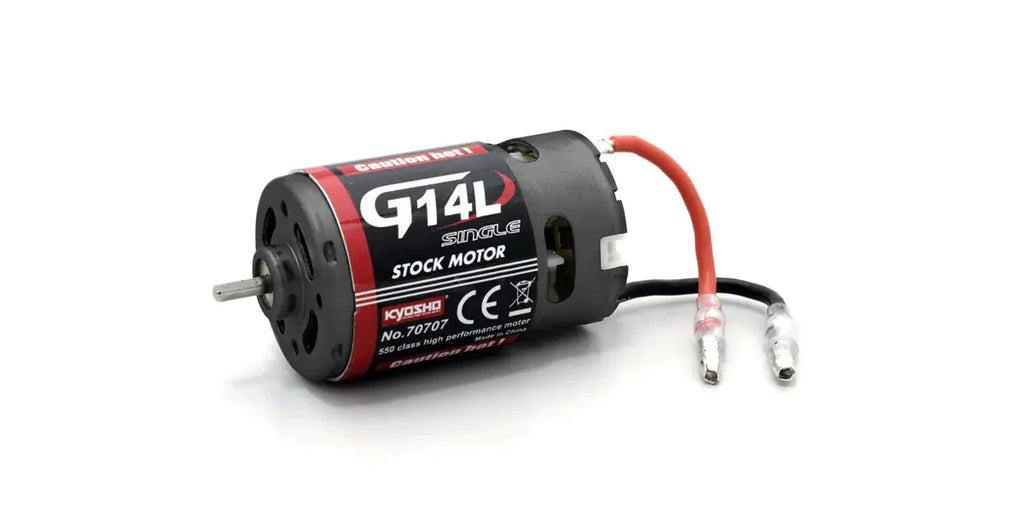

Comes with the new powerful 550 size 14T brushed motor(G14L). The long can with Steel ring around the motor case and internal cooling fan provides efficient torque and high speeds.

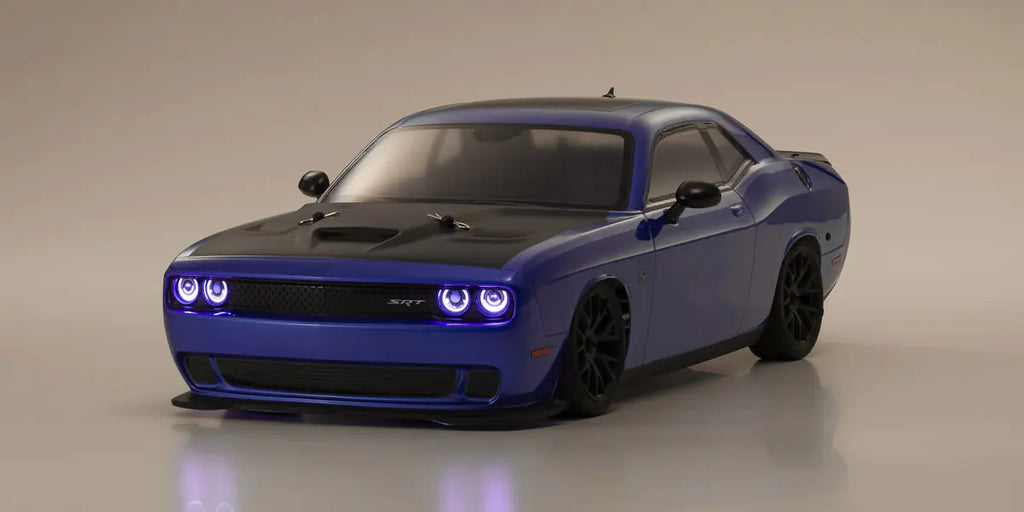

Front grille compatible with the separately sold 97054 LED light unit series.By installing the LED light unit, improves scale realism for body shell.

Technical Data

■Length   486mm
■Width  (Body width) 190mm(200mm)
■Height 144mm
■Wheelbase   274mm
■Tread (F/R)     F:174mm/R:174mm
■Tires (F/R)     F:φ66×25mm/R:φ66×25mm
■Gear Ratio     6.5:1
■Weight        1650g (approx.)
■R/C system      Syncro KT-231P+
■Motor      G14L

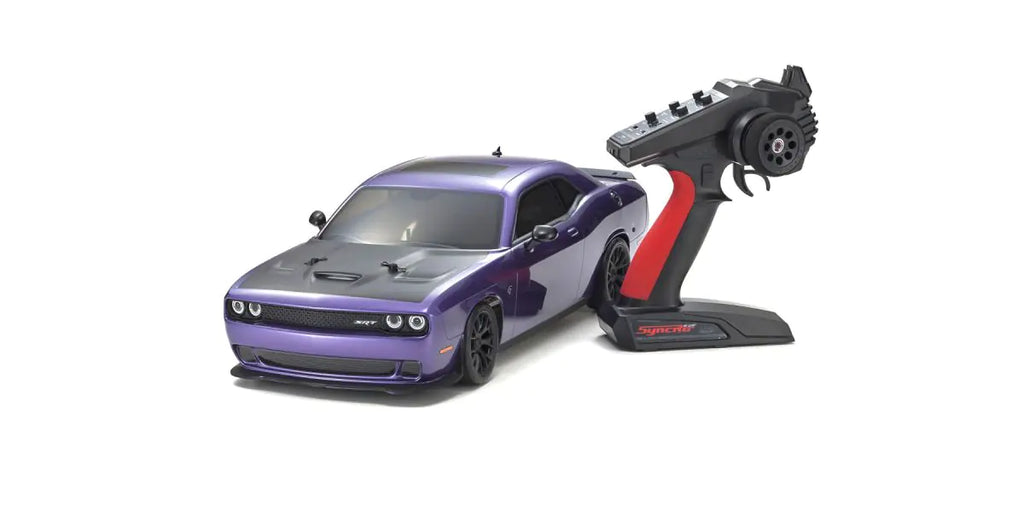

Kit Contents

●Completed chassis with R/C radio installed
●Factory assembled body complete with color scheme
●Syncro KT-231P+ transmitter
●Hexagonal wrench
●Spanner
● Setting change parts

Required to Run

●4 x AA batteries for transmitter
●Battery for chassis (recommended: 7.2V Ni-MH battery)
●Charger for battery for chassis
