Tamiya RC 58634 RCC NSX (TT-02 Chassis)

  • Sale
  • Regular price $235.00
  • Will be in stock after
Tax included. Shipping calculated at checkout.


Tamiya RC 58634 RCC NSX (TT-02 Chassis)

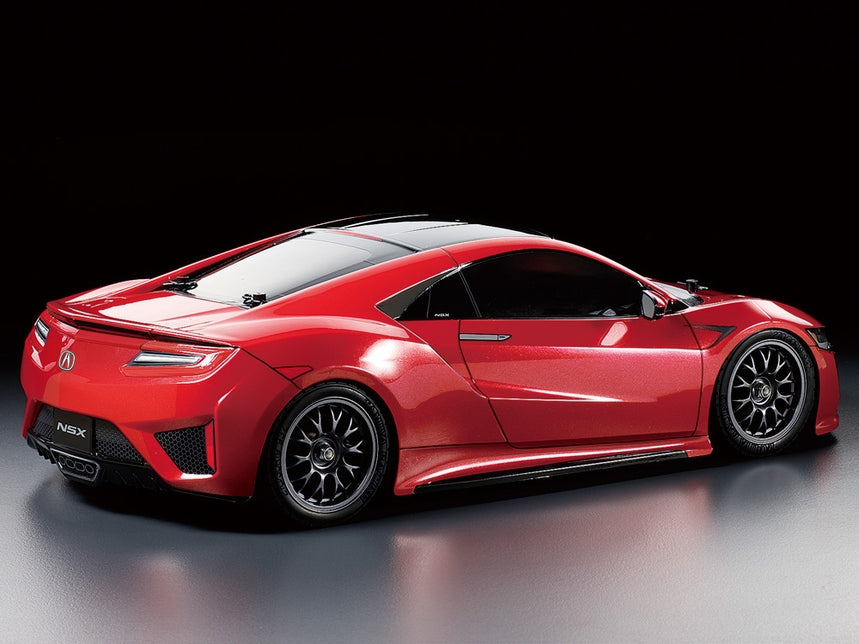

This is a R/C model assembly kit recreating the form of the outstanding new NSX super sports car. The included polycarbonate body is lightweight and durable, and captures the aerodynamically-styled NSX silhouette with aplomb. Stickers are included to recreate markings on the car, including the distinctive "Jewel Eye" 6-lamp headlights, window frames and air intake mesh. The model runs on the adaptable TT-02 chassis, a beginner friendly unit with tuning potential!

TT-02 Chassis:
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color mesh wheels are paired with radial tires.

Specifications
●Length: 438mm, Width: 190mm, Height: 124mm ●Wheelbase: 257mm ●Tire Width/Diameter: 27/67mm (Front & Rear) ●Bathtub-type Frame ●Shaft-Driven 4WD ●Front/Rear 4-Bevel Resin Differentials ●3-Piece Steering Tie-Rod ●4-Wheel Double Wishbone Suspension ●Front/Rear Friction Dampers ●Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions) ●Type 540 Motor






Separately Required Items
●2-Channel R/C Unit with ESC ●Battery Pack & Charger ●R6/AA/UM3 batteries for transmitter
